Septic tank outlet baffles and dip pipes

Component

Outlet baffle or dip-pipe arrangement

Purpose

Help retain floating and settled solids

Inspection evidence

Tank design and condition of fittings

Separate tasks

Desludging and component repair

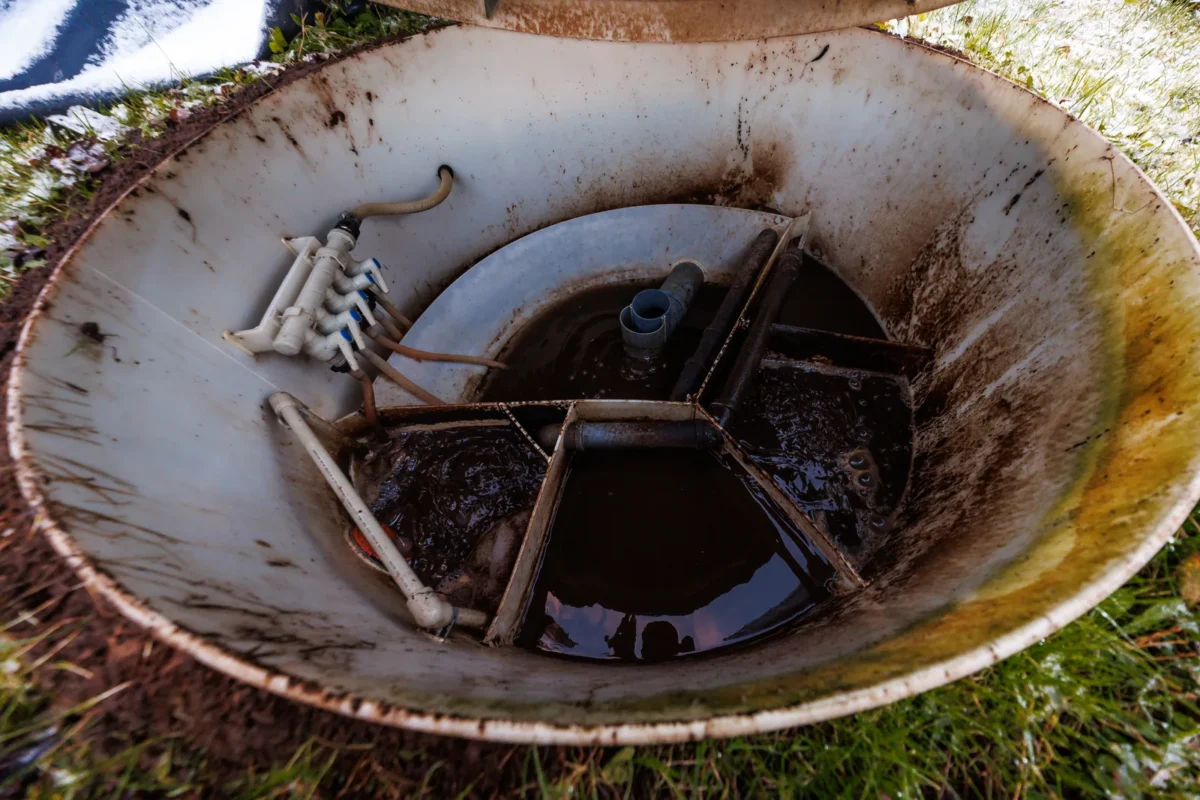

Outlet baffles and dip pipes in a septic tank

A septic tank separates settleable and floating solids from wastewater before the liquid passes to the next stage. Depending on the design, an outlet baffle or dip-pipe arrangement helps control flow and reduce solids carry-over. Replacement dimensions vary by tank and should not be taken from another model.

The tank make, model and installation records are the best guide to the original arrangement. Older tanks can use different internal details. The linked Premier Tech manual illustrates component function only; it is not a parts specification for another installation.

Problems caused by a damaged or missing outlet fitting

A damaged, displaced or missing outlet component can allow more floating or suspended material to pass downstream. That matters because solids reaching a drainage field can contribute to restriction and loss of performance.

Emptying accumulated sludge does not repair a damaged fitting or internal division. A tank may therefore have been emptied correctly while an outlet defect remains.

Inspection and maintenance

Inspection is limited to what can be seen safely at the inlet, outlet and internal divisions; access and liquid level may limit what can be established. Repairs and replacement parts need to suit the actual tank design.

In England, the Environment Agency’s general binding rules require the treatment system to be installed and operated in line with the manufacturer’s specification. A system that is not in good working order must be repaired or replaced. Other UK nations have their own regulatory arrangements.

Safety and the limits of emptying

Septic tanks can contain harmful gases and sewage, and the interior can present confined-space risks. Covers, openings and internal components should only be examined under safe working arrangements by people with the necessary competence and equipment. Routine emptying and component repair are separate jobs, so the outlet arrangement still needs its own assessment when solids carry-over or downstream problems are suspected.
